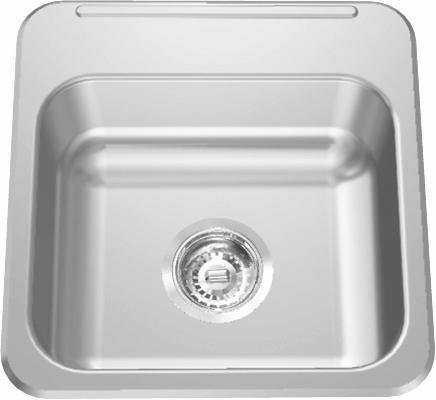

15-1/8″ 2-Hole 1 Bowl Drop-In Kitchen Sink – Stainless Steel LBS1306-1-2 Franke

–>
Single compartment self rimming topmount sink with faucet ledge. 20 gauge (0.9 mm), type 302 (CNS 18/8) stainless steel. Exposed surfaces are #4 satin finished. Undercoated to reduce condensation and resonance. Includes waste fitting, factory applied rim seal, cutout template, and factory installed EZ TORQUE fasteners. Certified to ASME A112.19.3-2008 / CSA B45.4-08. Wheelchair accessible: meets ADA (Americans with disabilities act guidelines) and ANSI A117.1 (Accessible and usable buildings and facilities). Check local codes to ensure compliance. Centre waste location. Includes 3 1/2″ (89 mm) crumb cup strainer with 1 1/2″ (DN38) brass tailpiece. 2 faucet holes, 1 1/2″ diameter, 4″ centres15 7/16 x 15 1/8″ Overall. 11 x 13 x 6″ Bowl. (FB x LR x D).392 x 384 mm Overall. 279 x 330 x 152 mm Bowl. (FB x LR x D).

<!–

• Dimensions:

–>

<!–

• Origin:

–>

<!–

• Finish:

–>

• Steel Type: Type 302
• Material: Stainless Steel
• Gauge: 20
• # of Bowls: 1
• Waste Location: Centre
• Faucet Hole Diameter: 1.5
• Faucet Holes: 2
• Topmount
