16-1/8″ 1 Bowl Drop-In Kitchen Sink – Stainless Steel ALBS4405P-1 Franke

–>
Wheelchair accessible, single compartment, self rimming topmount sink with faucet ledge. 18 gauge (1.2 mm), type 304 (CNS 18/10)
stainless steel. Exposed surfaces are #4 satin finished. Undercoated to reduce condensation and resonance. Includes waste fitting,
factory applied rim seal, cutout template, and factory installed EZ TORQUE��� fasteners. Certified to ASME A112.19.3-2008 / CSA B45.4-
08.
Meets ADA (Americans with disabilities act guidelines), ANSI A117.1 (Accessible and usable buildings and facilities), and CSA B651-
04 (Accessible design for the built environment). Check local codes to ensure compliance. Centre back waste location. Includes 3
1/2″ (89 mm) crumb cup strainer with 1 1/2″ (DN38) brass tailpiece. Model Options, specify when ordering: ALBS4405P-1-1, 1 faucet
hole, 1 1/2″ diameter. ALBS4405P-1-2, 2 faucet holes, 1 1/2″ diameter, 4″ centres. ALBS4405P-1-2, 2 faucet holes, 1 1/2″ diameter,

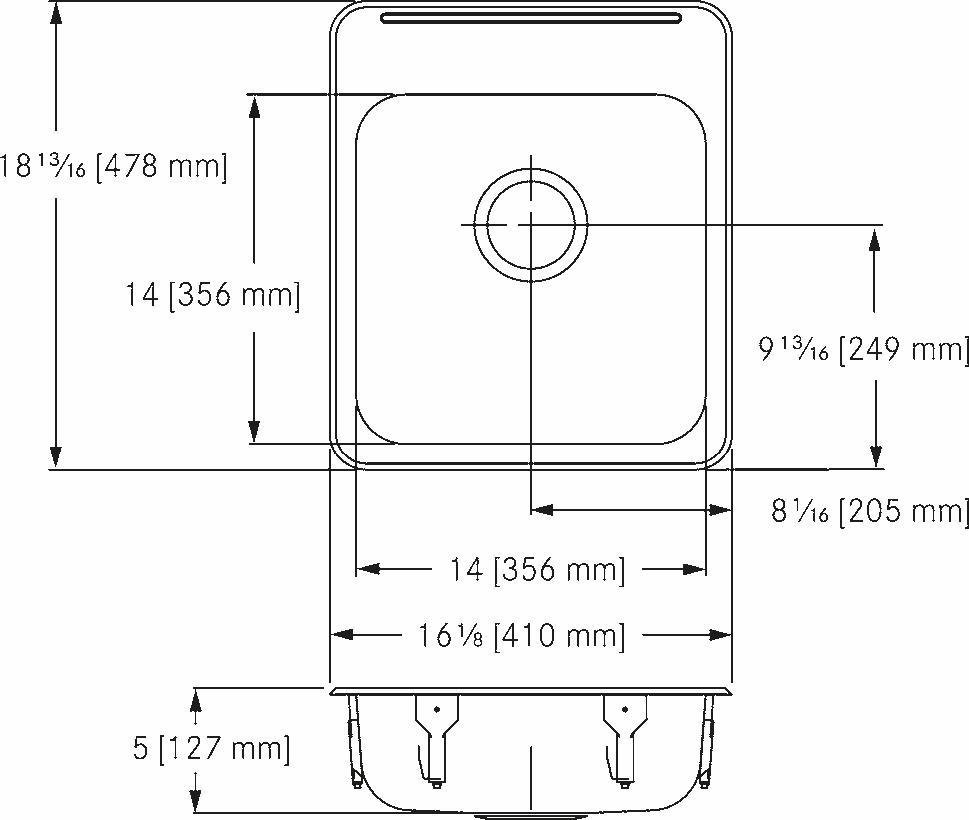

4″ centres, 8″ centreset. ALBS4405P-1, Custom (non-returnable). 18 13/16 x 16 1/8″ Overall. 14 x 14 x 5″ Bowl. (FB x LR x D). 478
x 410 mm Overall. 356 x 356 x 127 mm Bowl. (FB x LR x D).

<!–

• Dimensions:

–>

<!–

• Origin:

–>

<!–

• Finish:

–>

• Steel Type: Type 304
• Material: Stainless Steel
• # of Bowls: 1
• Waste Location: Centre Back
• Gauge: 18
• Topmount
