19-1/8″ 1 Bowl Drop-In Kitchen Sink – Stainless Steel ALBS2706P-1 Franke

–>
Wheelchair accessible, single compartment, self rimming topmount sink with faucet ledge. 18 gauge (1.2 mm), type 304 (CNS 18/10)
stainless steel. Exposed surfaces are #4 satin finished. Undercoated to reduce condensation and resonance. Includes waste fitting,
factory applied rim seal, cutout template, and factory installed EZ TORQUE™ fasteners. Certified to ASME A112.19.3-2008 / CSA B45.4-
08.
Meets ADA (Americans with disabilities act guidelines) and ANSI A117.1 (Accessible and usable buildings and facilities). Check local
codes to ensure compliance. Centre waste location. Includes 3 1/2″ (89 mm) crumb cup strainer with 1 1/2″ (DN38) brass tailpiece.
Model Options, specify when ordering: ALBS2706P-1-1, 1 faucet hole, 1 1/2″ diameter. ALBS2706P-1-3, 3 faucet holes, 1 1/2″

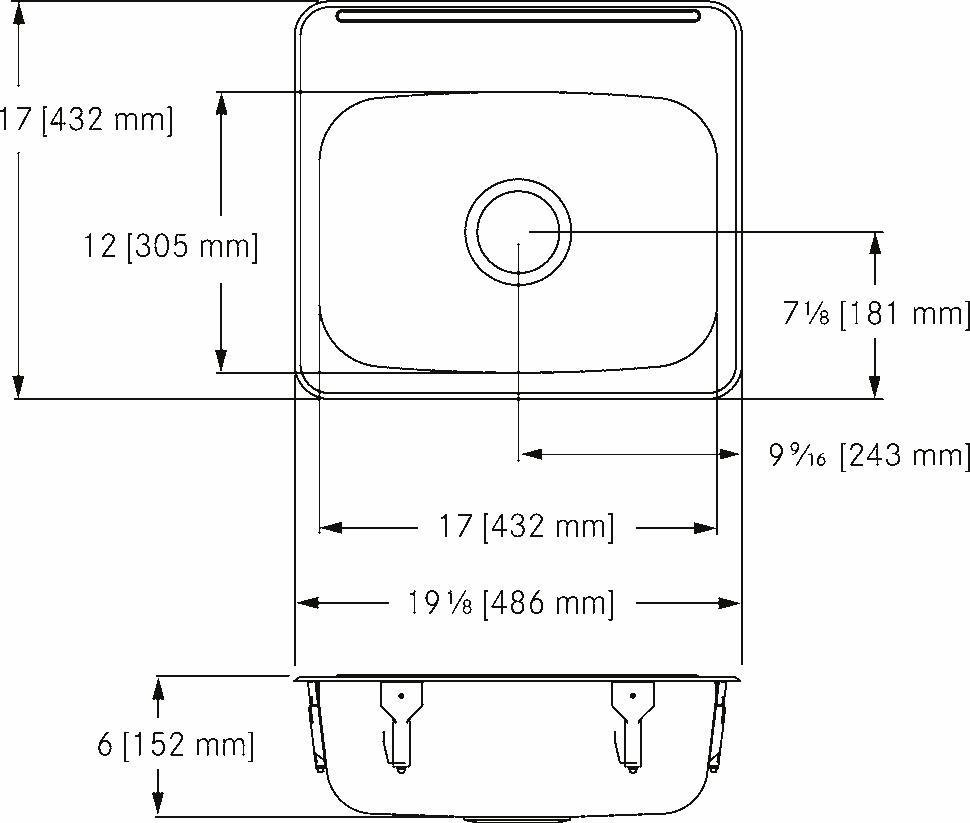

diameter, 4″ centres, 8″ centreset. ALBS2706P-1, Custom (non-returnable). 17 x 19 1/8″ Overall. 12 x 17 x 6″ Bowl. (FB x LR x D).
432 x 486 mm Overall. 305 x 432 x 152 mm Bowl. (FB x LR x D).

<!–

• Dimensions:

–>

<!–

• Origin:

–>

<!–

• Finish:

–>

• Steel Type: Type 304
• Material: Stainless Steel
• # of Bowls: 1
• Waste Location: Centre
• Gauge: 18
• Topmount
