20-1/8″ 1 Bowl Drop-In Kitchen Sink – Stainless Steel ALBS6805P-1 Franke

–>
Wheelchair accessible, single compartment, self rimming topmount sink with faucet ledge. 18 gauge (1.2 mm), type 304 (CNS 18/10)
stainless steel. Exposed surfaces are #4 satin finished. Undercoated to reduce condensation and resonance. Includes waste fitting,
factory applied rim seal, cutout template, and factory installed EZ TORQUE™ fasteners. Certified to ASME A112.19.3-2008 / CSA B45.4-
08. Meets ADA (Americans with disabilities act guidelines), ANSI A117.1 (Accessible and usable buildings and facilities), and CSA
B651-04 (Accessible design for the built environment). Check local codes to ensure compliance. Left rear waste location. Includes 3
1/2″ (89 mm) crumb cup strainer with 1 1/2″ (DN38) brass tailpiece. Model Options, specify when ordering: ALBS6805P-1-1, 1 faucet
hole, 1 1/2″ diameter. ALBS6805P-1-3, 3 faucet holes, 1 1/2″ diameter, 4″ centres, 8″ centreset. ALBS6805P-1, Custom (non-

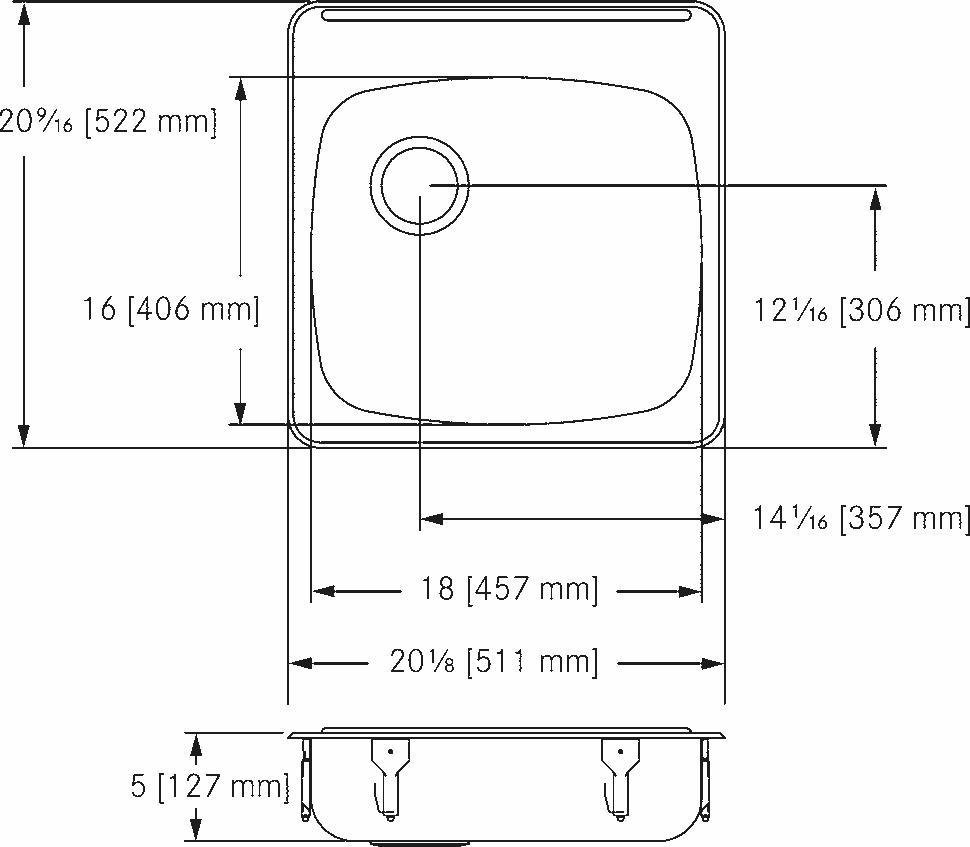

returnable). 20 9/16 x 20 1/8″ Overall. 16 x 18 x 5″ Bowl. (FB x LR x D). 522 x 511 mm Overall. 406 x 457 x 127 mm Bowl. (FB x LR x
D).

<!–

• Dimensions:

–>

<!–

• Origin:

–>

<!–

• Finish:

–>

• Steel Type: Type 304
• Material: Stainless Steel
• # of Bowls: 1
• Gauge: 18
• Waste Location: Left Rear
• Topmount
