20-1/8″ 1 Bowl Drop-In Kitchen Sink – Stainless Steel LBS6810P-1 Franke

–>
Single compartment self rimming topmount sink with faucet ledge. 18 gauge (1.2 mm), type 304 (CNS 18/10) stainless steel. Exposed
surfaces are #4 satin finished. Undercoated to reduce condensation and resonance. Includes waste fitting, factory applied rim seal,
cutout template, and factory installed EZ TORQUE™ fasteners. Certified to ASME A112.19.3-2008 / CSA B45.4-08.  Centre waste
location. Includes 3 1/2″ (89 mm) crumb cup strainer with 1 1/2″ (DN38) brass tailpiece. Model Options, specify when ordering:
LBS6810P-1-1, 1 faucet hole, 1 1/2″ diameter. LBS6810P-1-3, 3 faucet holes, 1 1/2″ diameter, 4″ centres, 8″ centreset. LBS6810P-1,

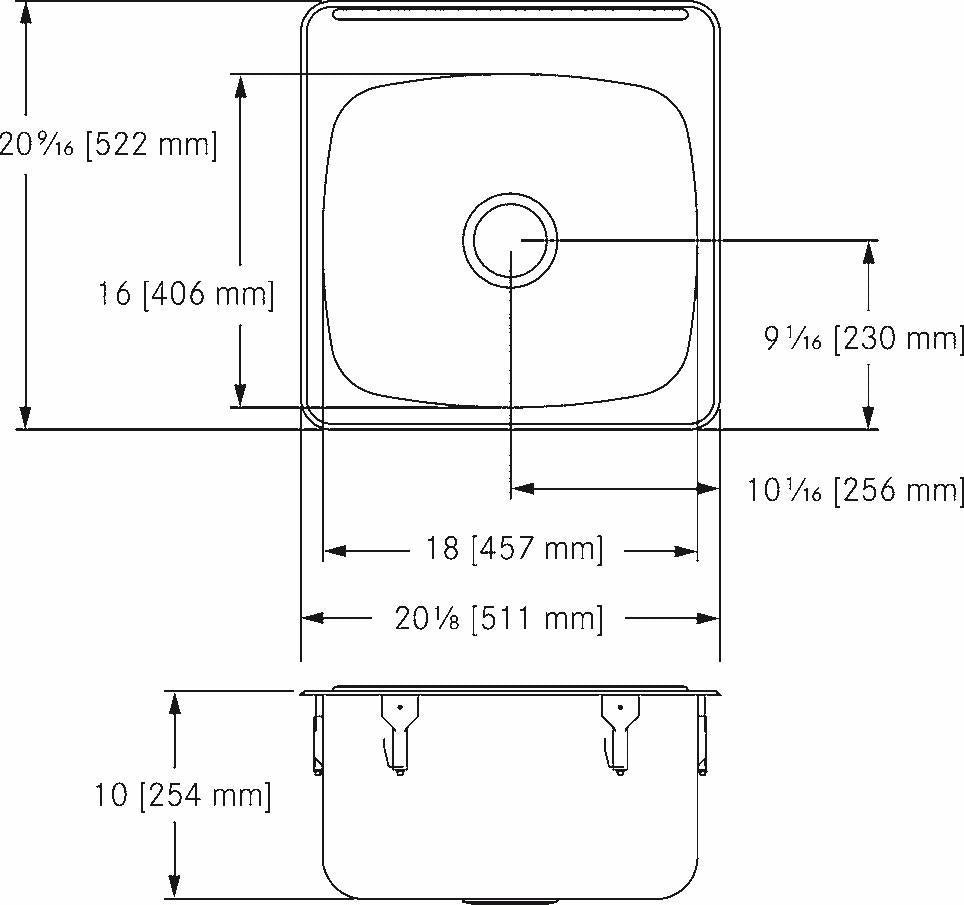

Custom (non-returnable). 20 9/16 x 20 1/8″ Overall. 16 x 18 x 10″ Bowl. (FB x LR x D). 522 x 511 mm Overall. 406 x 457 x 254 mm
Bowl. (FB x LR x D).

<!–

• Dimensions:

–>

<!–

• Origin:

–>

<!–

• Finish:

–>

• Steel Type: Type 304
• Material: Stainless Steel
• # of Bowls: 1
• Waste Location: Centre
• Gauge: 18
• Topmount
