20-1/8″ 1 Bowl Undermount Kitchen Sink – Stainless Steel UCS6805P-1 Franke

–>
Single compartment undermount sink. 18 gauge (1.2 mm), type 304 (CNS 18/10) stainless steel. Exposed surfaces are #4 satin finished.
Undercoated to reduce condensation and resonance. Includes waste fitting, cutout template, and installation hardware. Certified to
ASME A112.19.3-2008 / CSA B45.4-08. Wheelchair accessible: meets ADA (Americans with disabilities act guidelines) and ANSI A117.1
(Accessible and usable buildings and facilities). Check local codes to ensure compliance. Left rear waste location, 3 1/2″ (89 mm)

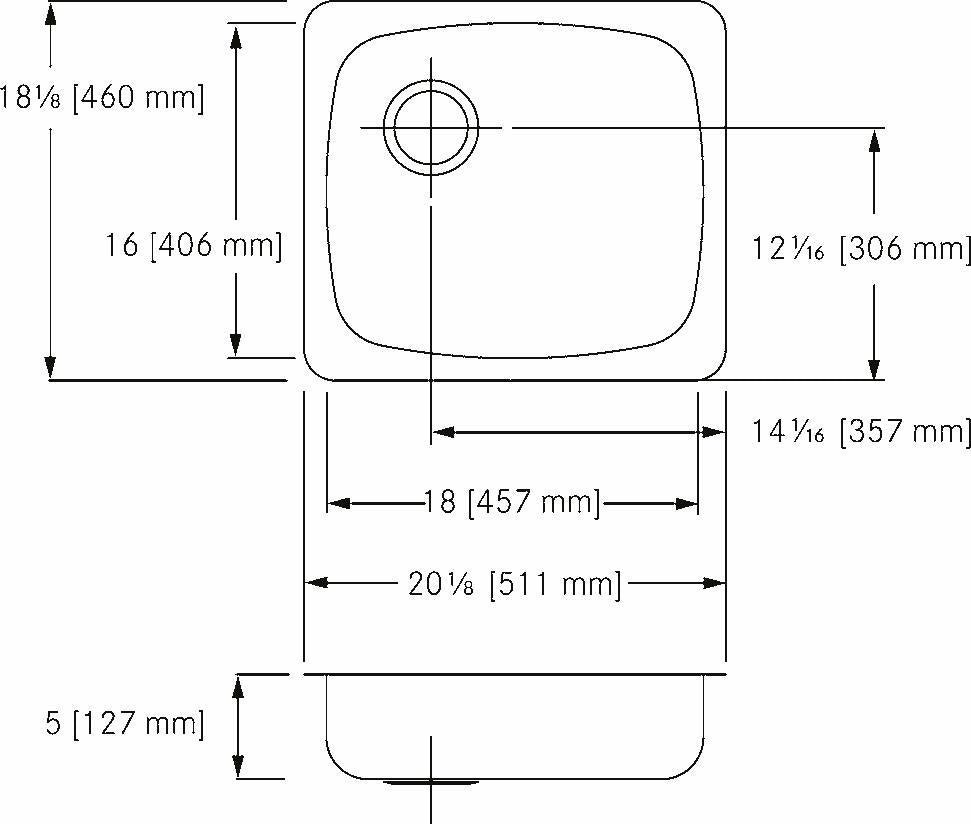

crumb cup strainer with 1 1/2″ (DN38) brass tailpiece. 18 1/8 x 20 1/8″ Overall. 16 x 18 x 5″ Bowl. (FB x LR x D). 460 x 511 mm
Overall. 406 x 457 x 127 mm Bowl. (FB x LR x D).

<!–

• Dimensions:

–>

<!–

• Origin:

–>

<!–

• Finish:

–>

• Steel Type: Type 304
• Material: Stainless Steel
• # of Bowls: 1
• Gauge: 18
• Waste Location: Left Rear
• Undermount
