25-5/8″ 1 Bowl Drop-In Kitchen Sink – Stainless Steel LBS7308-1 Franke

–>
Single compartment self rimming topmount sink with faucet ledge. 20 gauge (0.9 mm), type 302 (CNS 18/8) stainless steel. Exposed
surfaces are #4 satin finished. Undercoated to reduce condensation and resonance. Includes factory applied rim seal, cutout
template, and factory installed EZ TORQUE™ fasteners. Certified to ASME A112.19.3-2008 / CSA B45.4-08. Centre back waste location.
Includes 3 1/2″ (89 mm) crumb cup strainer with 1 1/2″ (DN38) brass tailpiece. Model Options: LBS7308-1-1, 1 faucet hole, 1 1/2″
diameter. LBS7308-1-3, 3 faucet holes, 1 1/2″ diameter, 4″ centres, 8″ centreset. LBS7308-1-4, 3 faucet holes, 1 1/2″ diameter, 4″

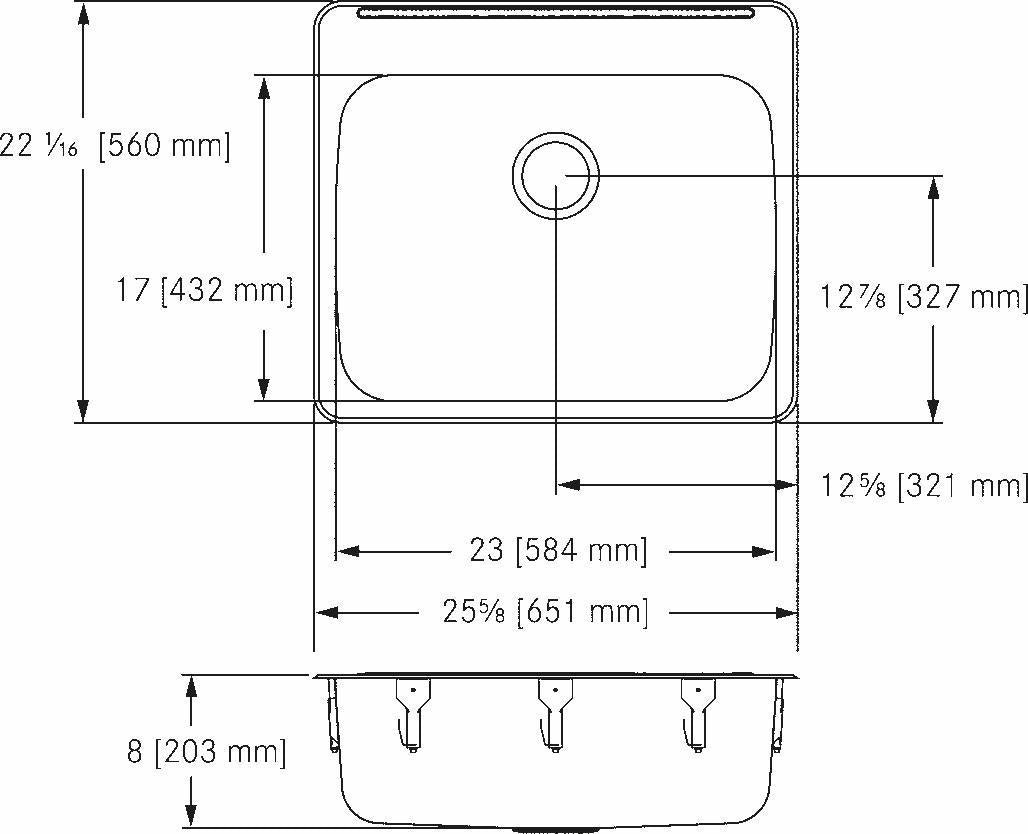

centres, 8″ centreset, plus 1 hole 4″ to the right (non-returnable). LBS7308-1, Custom (non-returnable). 22 1/16 x 25 5/8″ Overall.
17 x 23 x 8″ Bowl. (FB x LR x D). 560 x 651 mm Overall. 432 x 584 x 203 mm Bowl. (FB x LR x D).

<!–

• Dimensions:

–>

<!–

• Origin:

–>

<!–

• Finish:

–>

• Steel Type: Type 302
• Material: Stainless Steel
• Gauge: 20
• # of Bowls: 1
• Waste Location: Centre Back
• Topmount
