Double compartment self rimming topmount sink with faucet ledge. 18 gauge (1.2 mm), type 304 (CNS 18/10) stainless steel. Exposed
surfaces are #4 satin finished. Undercoated to reduce condensation and resonance. Includes waste fittings, factory applied rim seal,
cutout template, and factory installed EZ TORQUE™ fasteners. Certified to ASME A112.19.3-2008 / CSA B45.4-08. Wheelchair accessible:
meets ADA (Americans with disabilities act guidelines), ANSI A117.1 (Accessible and usable buildings and facilities), and CSA B651-
04 (Accessible design for the built environment). Check local codes to ensure compliance. Centre waste location. Includes 3 1/2″ (89
mm) crumb cup strainer with 1 1/2″ (DN38) brass tailpiece. Model Options: ALBD1305P-1-1, 1 faucet hole, 1 1/2″ diameter, centred

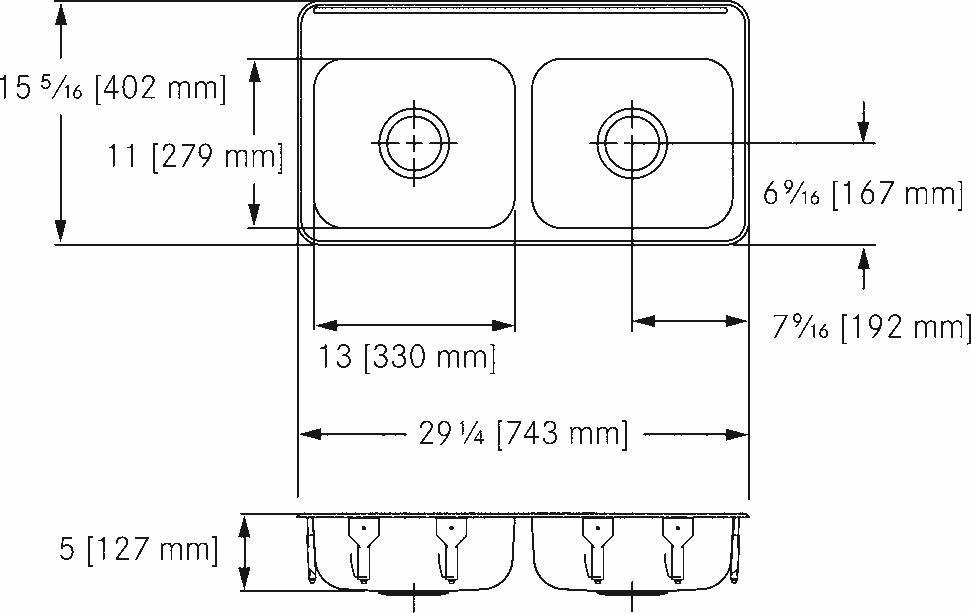

over partition. ALBD1305P-1-3, 3 faucet holes, 1 1/2″ diameter, 4″ centres, 8″ centreset. ALBD1305P-1, Custom (non-returnable). 15
13/16 x 29 1/4″ Overall. 11 x 13 x 5″ Bowl. (FB x LR x D). 402 x 743 mm Overall. 279 x 330 x 127 mm Bowl. (FB x LR x D).
<!–
- Dimensions:
–>
<!–
- Origin:
–>
<!–
- Finish:
–>
- Steel Type: Type 304
- Material: Stainless Steel
- Waste Location: Centre
- Gauge: 18
- Faucet Hole Diameter: 1.5
- # of Bowls: 2
- Topmount
- Manufacturer supplied links
- Specification Sheet
- Manufacturer Web Site
