30-7/8″ 1 Bowl Undermount Kitchen Sink – Stainless Steel UCD6405P-1 Franke

–>
Double compartment undermount sink. 18 gauge (1.2 mm), type 304 (CNS 18/10) stainless steel.  Exposed surfaces are #4 satin
finished. Undercoated to reduce condensation and resonance. Includes waste fittings, cutout template, and installation hardware.
Certified to ASME A112.19.3-2008 / CSA B45.4-08. Wheelchair accessible: meets ADA (Americans with disabilities act guidelines) and
ANSI A117.1 (Accessible and usable buildings and facilities). Check local codes to ensure compliance. Centre back waste location.

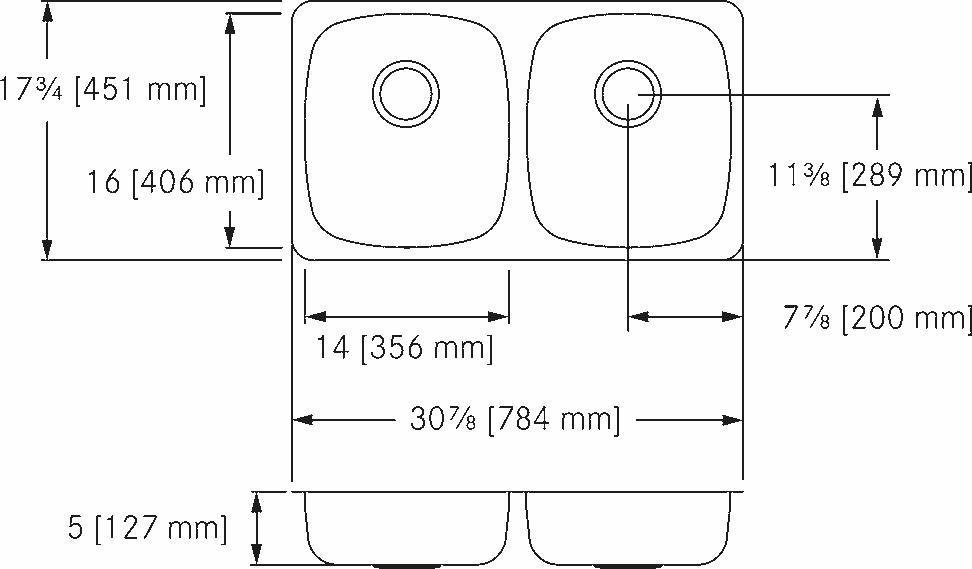

Includes 3 1/2″ (89 mm) crumb cup strainer with 1 1/2″ (DN38) brass tailpiece. 17 3/4 x 30 7/8″ Overall. 16 x 14 x 5″ Bowl. (FB x LR
x D). 451 x 784 mm Overall. 406 x 356 x 127 mm Bowl. (FB x LR x D).

<!–

• Dimensions:

–>

<!–

• Origin:

–>

<!–

• Finish:

–>

• Steel Type: Type 304
• Material: Stainless Steel
• # of Bowls: 1
• Waste Location: Centre Back
• Gauge: 18
• Undermount
