33-1/4″ 2 Bowl Drop-In Kitchen Sink – Stainless Steel ALBD7505P-1 Franke

–>
Double compartment self rimming topmount sink with faucet ledge. 18 gauge (1.2 mm), type 304 (CNS 18/10) stainless steel. Exposed
surfaces are #4 satin finished. Undercoated to reduce condensation and resonance. Includes waste fittings, factory applied rim seal,
cutout template, and factory installed EZ TORQUE™ fasteners. Certified to ASME A112.19.3-2008 / CSA B45.4-08. Wheelchair
accessible: meets ADA (Americans with disabilities act guidelines), ANSI A117.1 (Accessible and usable buildings and facilities),
and CSA B651-04 (Accessible design for the built environment). Check local codes to ensure compliance. Centre back waste location.
Includes 3 1/2″ (89 mm) crumb cup strainer with 1 1/2″ (DN38) brass tailpiece.  Sink has Spillway® partition. Model Options:
ALBD7505P-1-1, 1 faucet hole, 1 1/2″ diameter. ALBD7505P-1-3, 3 faucet holes, 1 1/2″ diameter, 4″ centres, 8″ centreset. ALBD7505P-

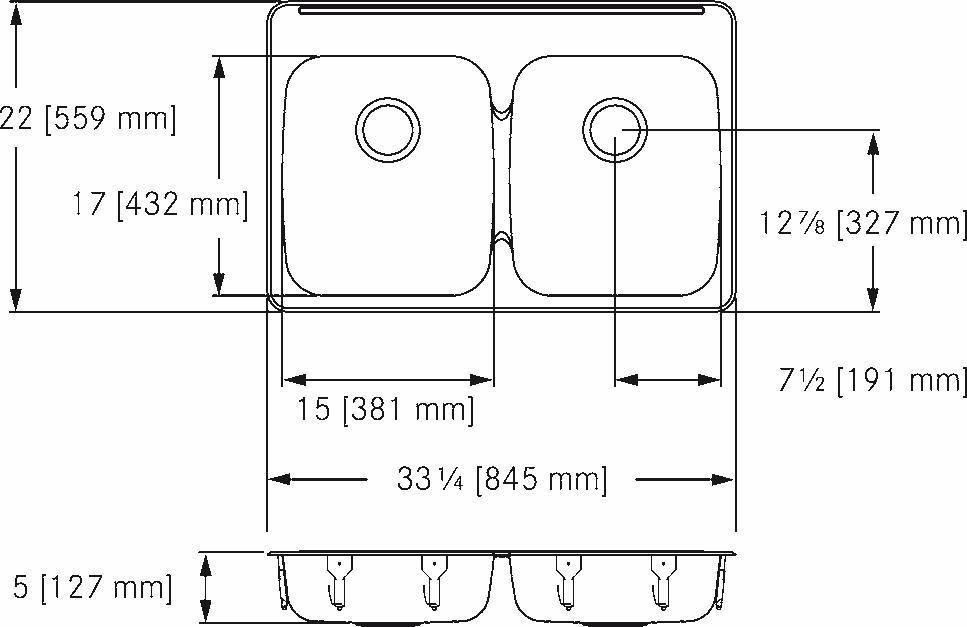

1, Custom (non-returnable). 22 x 33 1/4″ Overall. 17 x 15 x 5″ Bowl. (FB x LR x D). 559 x 845 mm Overall. 432 x 381 x 127 mm Bowl.
(FB x LR x D).

<!–

• Dimensions:

–>

<!–

• Origin:

–>

<!–

• Finish:

–>

• Steel Type: Type 304
• Material: Stainless Steel
• Waste Location: Centre Back
• Gauge: 18
• # of Bowls: 2
• Topmount
